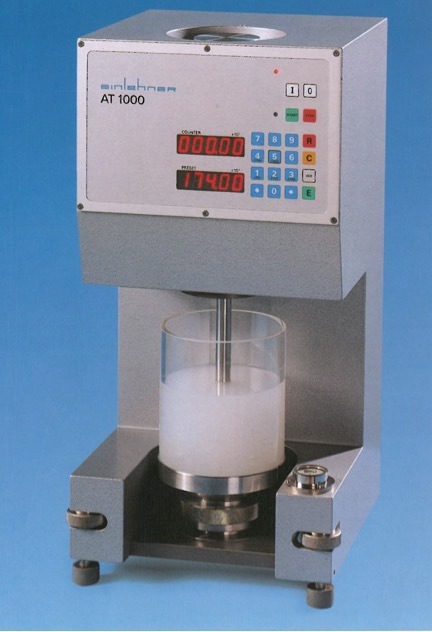

DIGITAL FILLER ABRASION TESTER
Model: ST 1000The ST 1000 abrasion tester is engineered to the highest technical standards, designed to precisely compare and control the quality of fillers, clay, and pigments.
Crucial for pulp and paper production, this unit provides definitive data on the wear properties of paper machine screens, ensuring optimal performance and consistency.
Request a Quote

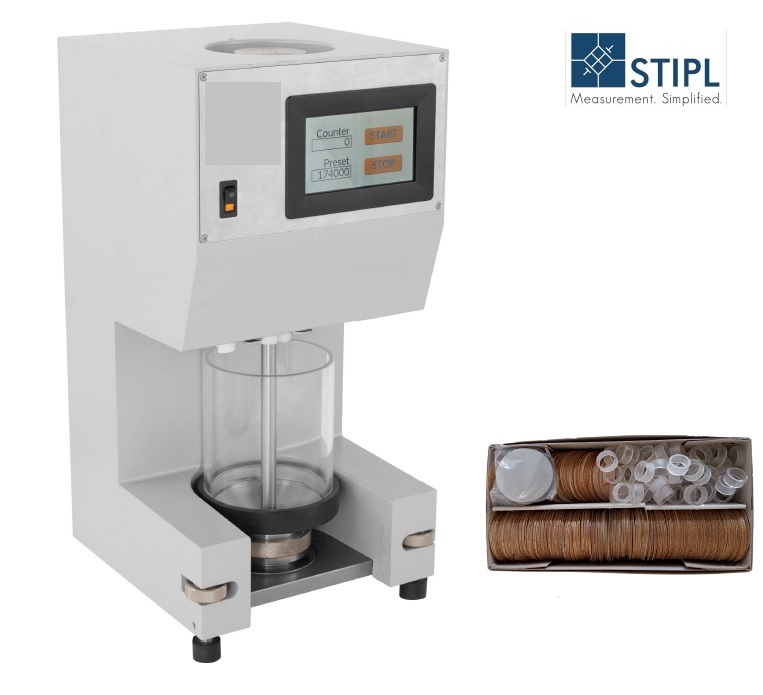

Touch FILLER ABRASION TESTER
Model: ST 1000-TThe ST 1000 abrasion tester is engineered to the highest technical standards, designed to precisely compare and control the quality of fillers, clay, and pigments.
Crucial for pulp and paper production, this unit provides definitive data on the wear properties of paper machine screens, ensuring optimal performance and consistency.
Request a QuoteTechnical Overview & Principle
This instrument offers extensive testing capabilities for comparing filler and pigment structures, specifically evaluating their abrasive effects on the paper machine wire screen. The design includes a dual-display digital preset revolution controller and a complete Plexiglas filler jar.
Operationally, a standard round test screen is abraded in a watery suspension of the material being tested. This is achieved via the slide friction load of a standard rotary abrader (Base with PVC covers) under a strictly defined load.
After the programmed number of standard revolutions, the machine determines the weight loss to the standard test screen (comparison of initial and final weight). This measured weight loss (mg) serves as the definitive comparison value for the wear effect of the tested material.
Design Standards:
- Based on the exact principles defined in Zell Chemig notice sheet V/27.5/75 (as per Einlehner abrasion tester specifications).
- Designed to replicate original German technical specifications for precision.
- Optimal submerged accuracy via a narrower gap between the impeller shaft and the bottom.
Spare Parts Available In Stock
Einlehner supplies dedicated test material packs consisting of essential consumables and wear parts along with the equipment.

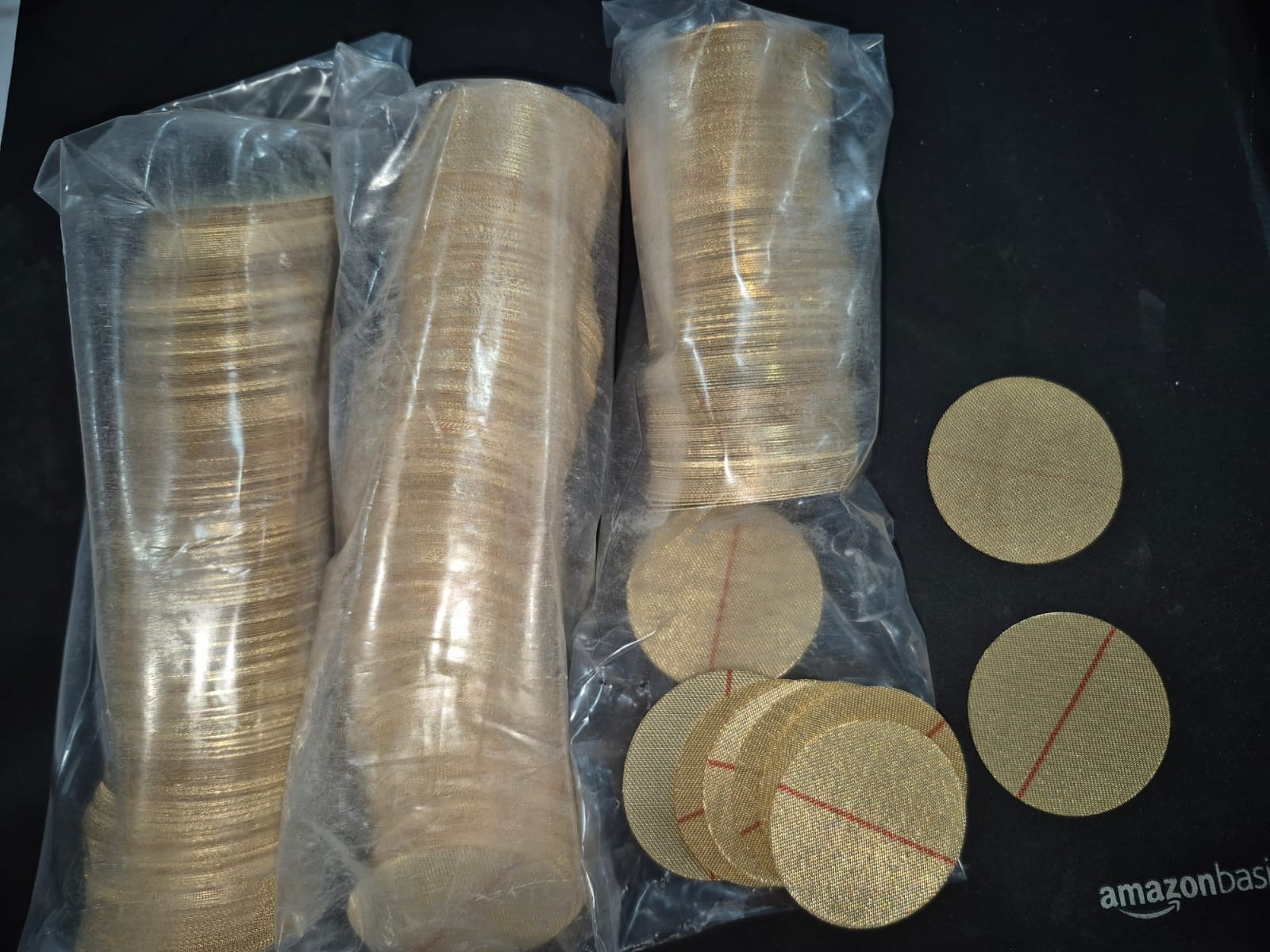

Standard Phosphorus Bronze Test Screens

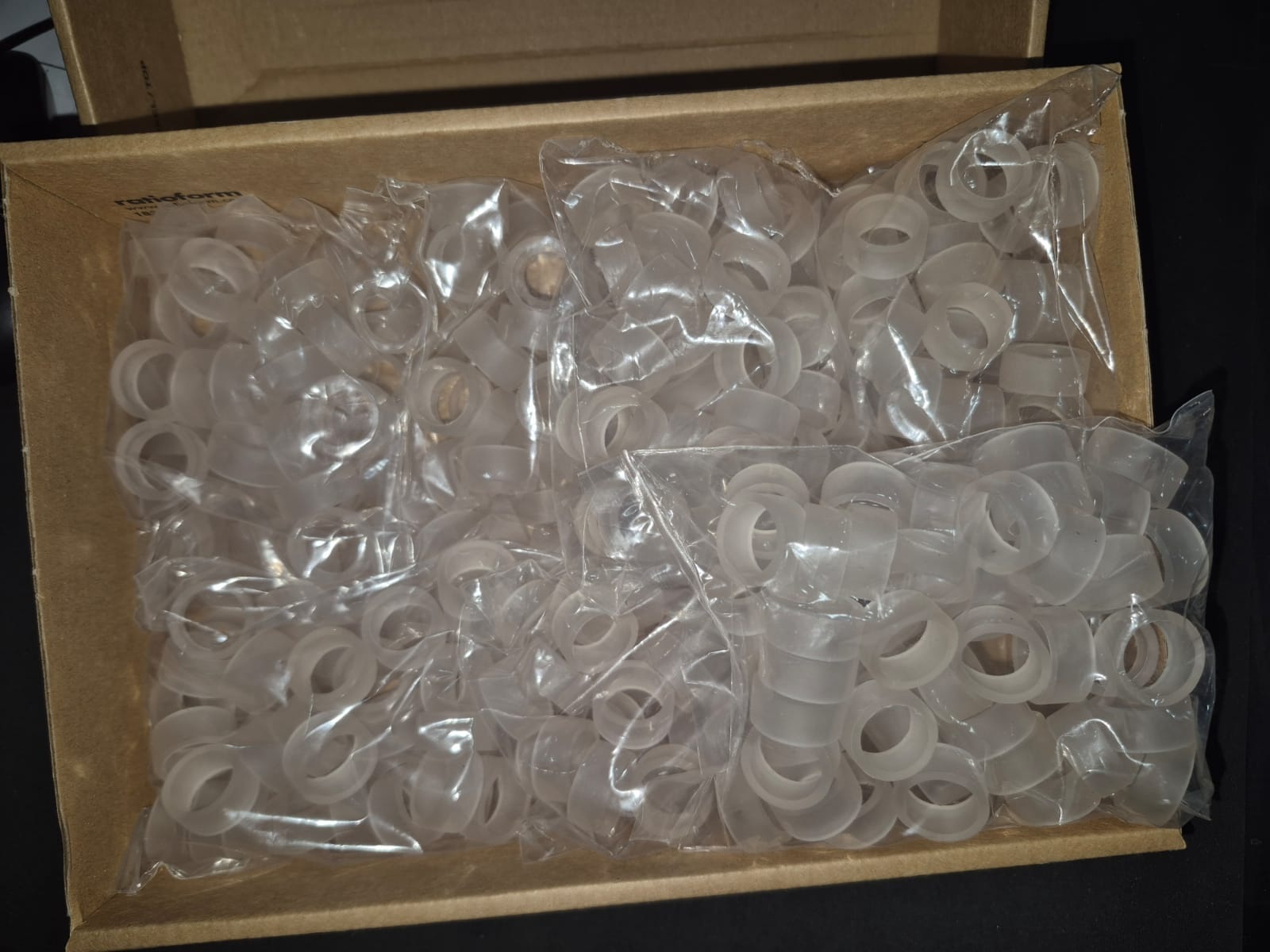

Standard PVC Abrader Rings

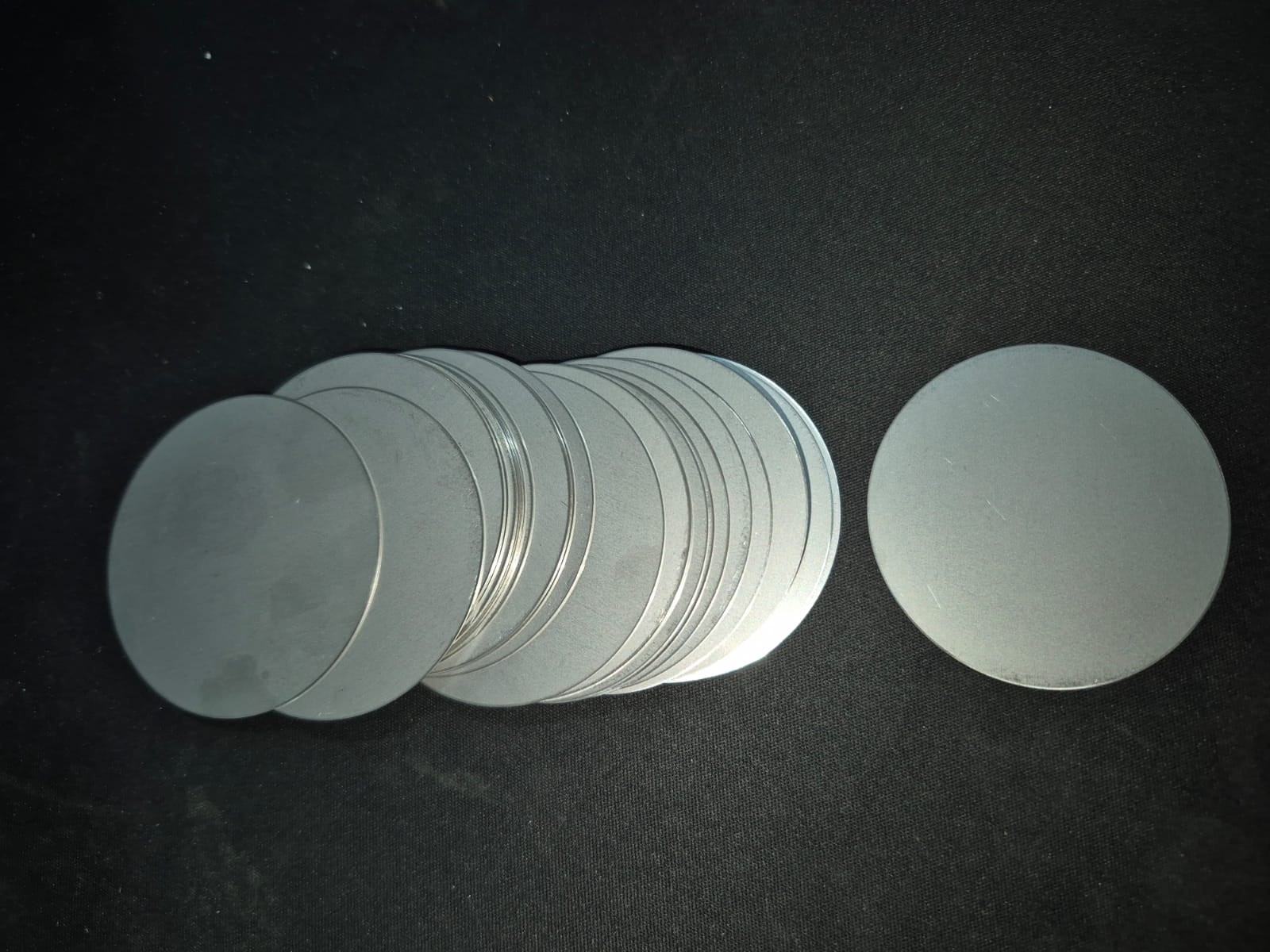

SS Wear Plates

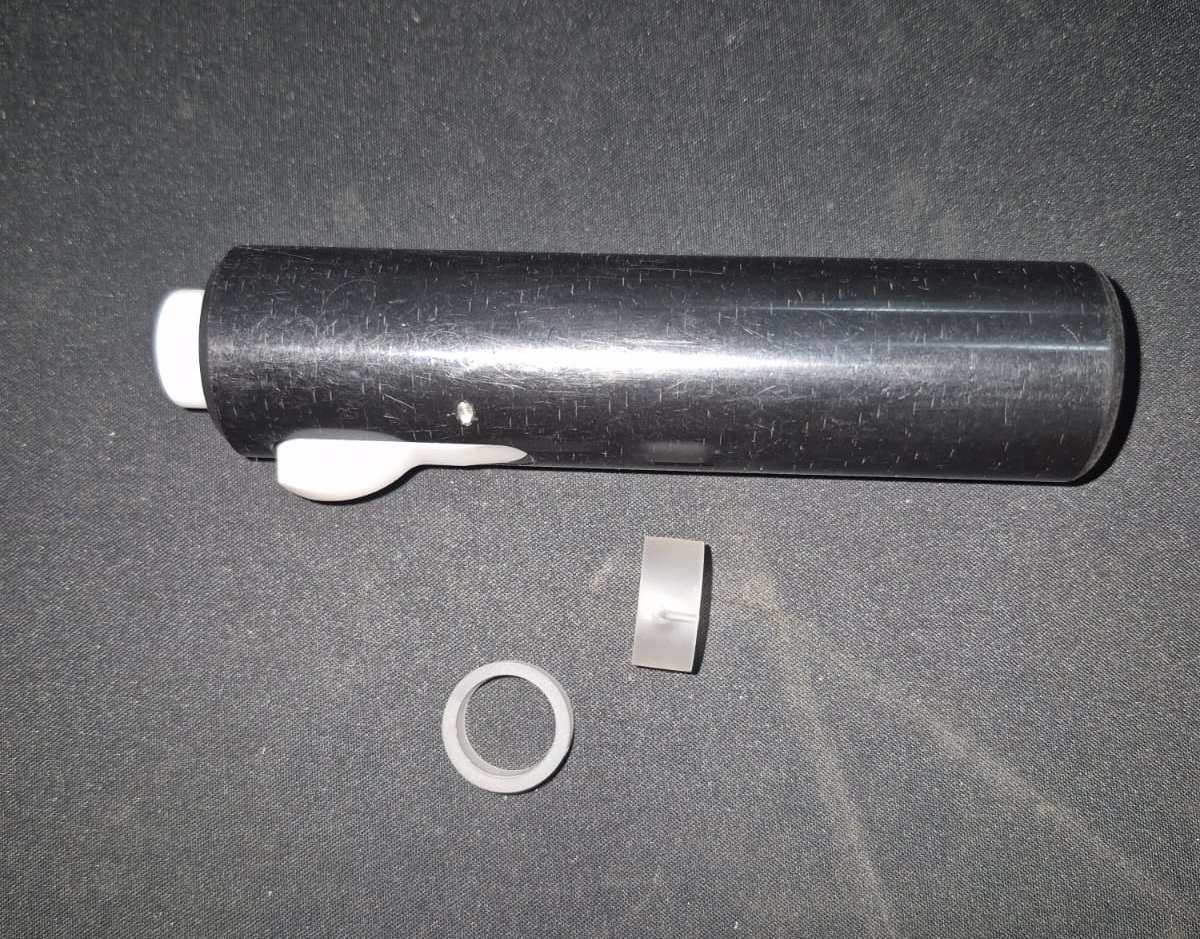

Standard PVC Abrader Rings & Mounting Unit

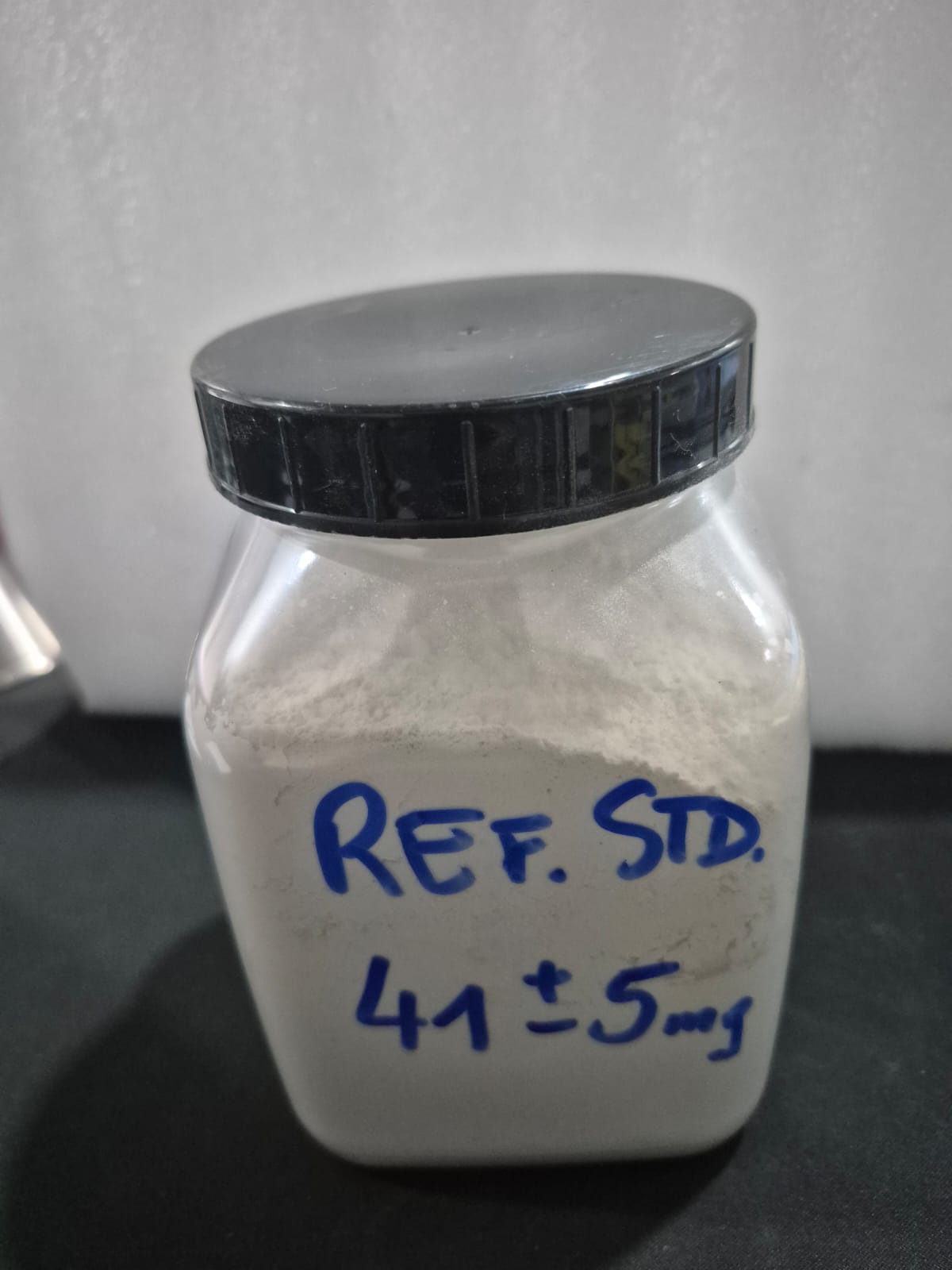

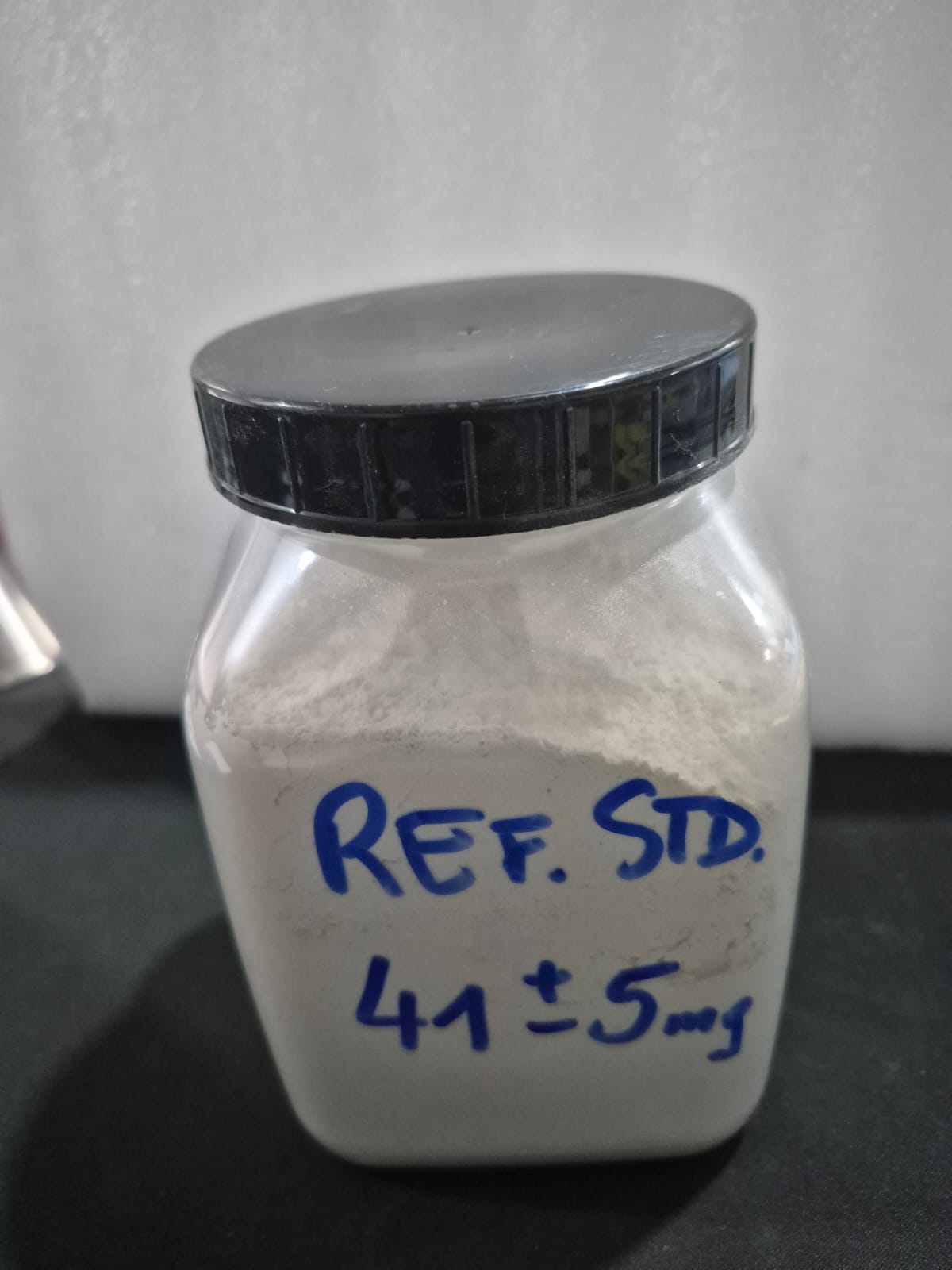

Calibration Reference Powder

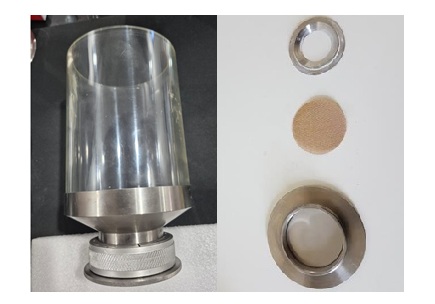

Plexiglass Test Jar
Get in Touch
Our Digital and Touch Filler Abrasion Testers (Model: ST 1000 & ST 1000-T) are engineered to the highest technical standards. Reach out to request a quote or learn how we can help precisely compare and control the quality of fillers for optimal performance in your production.
-
